Product information
For Sale:

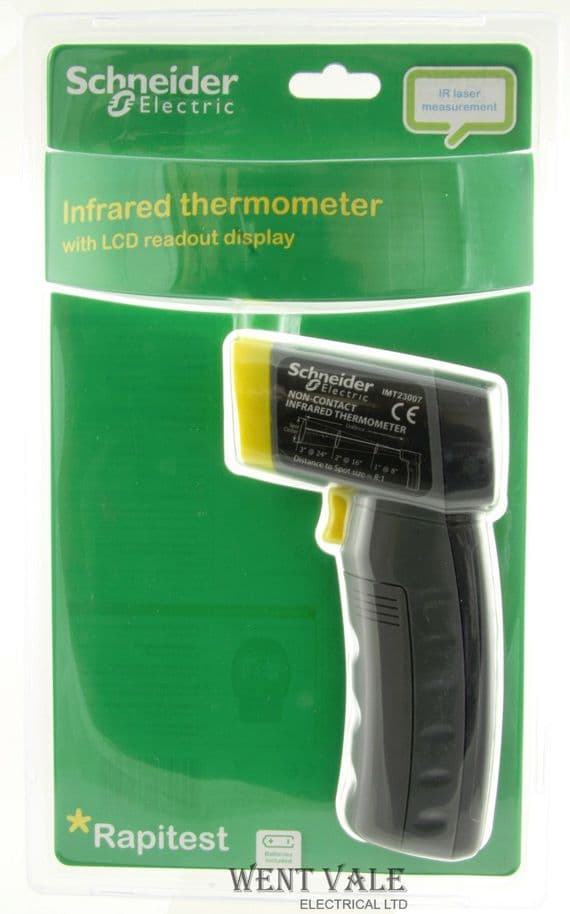

Schneider Electric IMT23007 - Non Contact Infrared Thermometer with LCD Readout. Cat No: IMT23007
Hand held Infrared thermometer for surface temperature measurements.
Takes a variety of non-contact thermo measurement applications.
These include: Automotive applications, BBQ's, radiators and heating systems, electrical installations (including the checking of circuit protection devices and cables for overloading) and many other applications.
Comes complete with hand lanyard and battery.
Full instructions are included
As these divices have been in storage for a good while we include three complimentary PP3 battery just in case the included battery is past it's shelf life
Be sure to consider distance to "spot size ratio" and "field of view" when using this unit.
Wear eye protection if possible when using this device.
Normal 0 false false false EN-GB X-NONE X-NONE MicrosoftInternetExplorer4 Do not operate this devicearound explosive gases, vapour and dust
Warning Never point the laser IR thermostat at a person or animal. Risk of danger to health
Features and functionality
Ergonomic Handle - For a comfortable, secure grip
Activation Trigger - Press continuously to operate device
Laser Pointer - Direct toward the target and press the trigger to record the temperature
Backlit LCD Display - Features: Battery life, hold status and temperature display
Temperature Unit Selector - Chooses Fahrenheit or Celsius
Laser On/Off - Activate when in measurement mode
Details and specifications
Tests surface temperatures
Temperature Range: -20°C to 520°C (-4°F to 968°F)
Accuracy: ±2°C (±3°F) or 2% of reading
Repeatability: 2% or 3°F
Response time: 500mSec, 59%
Spectral Response: 7-18µm
Requires a PP3 or equivalent 9v alkaline battery (supplied)
Size: 170 x 90 x 35mm
Emissivity 0.95
Ambient Operating Range: 32 °F to 105 °F
Relative Humidity: 10-95% R H non-con densing @ up to 86 °F
Weight 150g without battery.
Voltage: 9V
Battery life: 12 hrs
Distance to spot: 8:1
Manufactured and complys to BSEN 60825-1: 1994
NEED A GOOD IDEA FOR A BIRTHDAY, FATHERS DAY OR CHRISTMAS PRESENT? LOOK NO FURTHER
A handy instrument at just 150 grams a great addition to any tool box, in fact I have held one back for my own use.
Used correctly and looked after it should give years of good service
Brand new sealed in a blister pack
Normal 0 false false false EN-GB X-NONE X-NONE MicrosoftInternetExplorer4
Normal 0 false false false EN-GB X-NONE X-NONE MicrosoftInternetExplorer4 PaymentDetails.
You can pay bythe following methods: PayPal, Direct Bank Transfer (BACS) please ask for our account details, plus we also take credit or debit cards payments over the phone.
For deliveries outside the UK .
International postage will be shipped via a Royal Mailtracked shipping method dependent on the destination country.
Heavy, valuable or large parcels will be shipped with thelarger courier services but these tend to be costly, so you must ask for aquotation before purchase, and let us know how quickly you need the goods asthis greatly affects the price.
PostageCharges.
Please Note: The postage quoted is for both the cost of the postalservice used and the cost of packing materials used , please take this into consideration when leaving DSRratings.
Orders placed before 3 PM on any business day will be posted same day
Inclusive postage is offered on this listing by combining the item priceand the postage & packing costs. If this option is chosen it will be sentout via our basic postage method advertised on the listing.
We reservethe right to upgrade the postal service from the advertised should the needarise.
If you require it quicker please choose the Royal Mail 'Special Delivery'guaranteed next day delivery option, but please note there is an extra chargefor this option. Also note there are Saturday restrictions with this servicewhen ordering on Fridays.
Photographs.
I use mainly my own stock photos so the picture on the listing may differto the actual listed item, but will be a match.
The Items on sale.
After thesale is made, on rare occasions during cleaning and final inspection we may findthat an item is damaged or faulty. If this was the last in stock and we have analternative item we will inform the buyer and send the alternative one out.
Any questions please ask.
Thank you for viewing thislisting.
Please take a moment to review myother items.
Add me to your favouritesellers list and subscribe to my email product updates.
Take advantage of our combinedpostage offer.
Please note: Went Vale is not registered for VAT, so we areunable to provide VAT invoices. You may obtain all the necessary paperwork fromyour 'My eBay' purchase history section 'View order details'.
It is recommended that this item and all my otherelectrical items are installed by a qualified electrician. The seller takes noresponsibility for injury/damage to persons or property due to incorrectselection or installation of equipment.
Many thanks.
Schneider Electric IMT23007 - Non Contact Infrared Thermometer with LCD Readout. Cat No: IMT23007
Hand held Infrared thermometer for surface temperature measurements.
Takes a variety of non-contact thermo measurement applications.
These include: Automotive applications, BBQ's, radiators and heating systems, electrical installations (including the checking of circuit protection devices and cables for overloading) and many other applications.
Comes complete with hand lanyard and battery.
Full instructions are included
As these divices have been in storage for a good while we include three complimentary PP3 battery just in case the included battery is past it's shelf life
Be sure to consider distance to "spot size ratio" and "field of view" when using this unit.
Wear eye protection if possible when using this device.
Normal 0 false false false EN-GB X-NONE X-NONE MicrosoftInternetExplorer4 Do not operate this devicearound explosive gases, vapour and dust
Warning Never point the laser IR thermostat at a person or animal. Risk of danger to health
Features and functionality
Ergonomic Handle - For a comfortable, secure grip
Activation Trigger - Press continuously to operate device
Laser Pointer - Direct toward the target and press the trigger to record the temperature
Backlit LCD Display - Features: Battery life, hold status and temperature display
Temperature Unit Selector - Chooses Fahrenheit or Celsius
Laser On/Off - Activate when in measurement mode
Details and specifications
Tests surface temperatures
Temperature Range: -20°C to 520°C (-4°F to 968°F)
Accuracy: ±2°C (±3°F) or 2% of reading
Repeatability: 2% or 3°F
Response time: 500mSec, 59%
Spectral Response: 7-18µm
Requires a PP3 or equivalent 9v alkaline battery (supplied)
Size: 170 x 90 x 35mm
Emissivity 0.95
Ambient Operating Range: 32 °F to 105 °F
Relative Humidity: 10-95% R H non-con densing @ up to 86 °F
Weight 150g without battery.
Voltage: 9V
Battery life: 12 hrs
Distance to spot: 8:1
Manufactured and complys to BSEN 60825-1: 1994
NEED A GOOD IDEA FOR A BIRTHDAY, FATHERS DAY OR CHRISTMAS PRESENT? LOOK NO FURTHER
A handy instrument at just 150 grams a great addition to any tool box, in fact I have held one back for my own use.
Used correctly and looked after it should give years of good service
Brand new sealed in a blister pack
Normal 0 false false false EN-GB X-NONE X-NONE MicrosoftInternetExplorer4
Normal 0 false false false EN-GB X-NONE X-NONE MicrosoftInternetExplorer4 PaymentDetails.
You can pay bythe following methods: PayPal, Direct Bank Transfer (BACS) please ask for our account details, plus we also take credit or debit cards payments over the phone.
For deliveries outside the UK .
International postage will be shipped via a Royal Mailtracked shipping method dependent on the destination country.
Heavy, valuable or large parcels will be shipped with thelarger courier services but these tend to be costly, so you must ask for aquotation before purchase, and let us know how quickly you need the goods asthis greatly affects the price.
PostageCharges.
Please Note: The postage quoted is for both the cost of the postalservice used and the cost of packing materials used , please take this into consideration when leaving DSRratings.
Orders placed before 3 PM on any business day will be posted same day
Inclusive postage is offered on this listing by combining the item priceand the postage & packing costs. If this option is chosen it will be sentout via our basic postage method advertised on the listing.
We reservethe right to upgrade the postal service from the advertised should the needarise.
If you require it quicker please choose the Royal Mail 'Special Delivery'guaranteed next day delivery option, but please note there is an extra chargefor this option. Also note there are Saturday restrictions with this servicewhen ordering on Fridays.
Photographs.
I use mainly my own stock photos so the picture on the listing may differto the actual listed item, but will be a match.
The Items on sale.
After thesale is made, on rare occasions during cleaning and final inspection we may findthat an item is damaged or faulty. If this was the last in stock and we have analternative item we will inform the buyer and send the alternative one out.
Any questions please ask.
Thank you for viewing thislisting.
Please take a moment to review myother items.
Add me to your favouritesellers list and subscribe to my email product updates.
Take advantage of our combinedpostage offer.
Please note: Went Vale is not registered for VAT, so we areunable to provide VAT invoices. You may obtain all the necessary paperwork fromyour 'My eBay' purchase history section 'View order details'.
It is recommended that this item and all my otherelectrical items are installed by a qualified electrician. The seller takes noresponsibility for injury/damage to persons or property due to incorrectselection or installation of equipment.
Many thanks.
Technical specifications
MPN: | IMT23007 |
Brand: | Schneider |
Condition: | New |
Product Code: | IMT23007 |
Weight: | 0.3kg |
