Product information
For Sale:

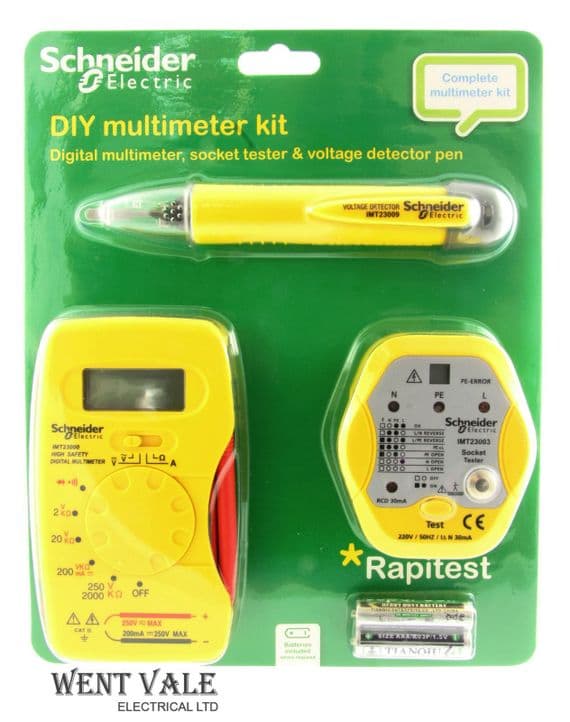

Schneider Electric IMT23011 - Three Piece DIY Multimeter Kit.
Cat No: IMT23011
Compromising of: IMT23000 Digital Multimeter, IMT23003 Socket Tester and IMT23009 Voltage Test Pen
IMT23000 Digital Multimeter
Ergonomic styling allows one handed dexterity and easy function selection. Full instructions and batteries included
Features and functionality
Auto Ranging - Automatically switches between AC and DC when detected
Integral Test Leads - The test leads are built into the meter, no plugging in and out of the test leads.
Ergonomic Design - For a comfortable, secure grip. Can be used hands free
LCD Display - Large, easy to read display Features: Low battery indicator. Max reading 1999
Overload Protected - Provides regulated power to the unit in the event of over voltage
Audible Continuity Setting - No need to keep looking at the meter during continuity testing
Tech Specs
Voltage Ranges AC and DC: 2, 20, 200 and 250V
DC Current: 200mA
Resistance Ω 2k, 20k, 200k and 2000k
Diode Check: 3.2V/0.8mA
Continuity Setting: Yes
Power: 12V Battery
Size/Weight: 70mm x 120mm x 21mm. 110g (with battery)
IMT23003 Socket Tester
Ensure your plug sockets are correctly wired and connected with this socket tester, which also includes a button for testing the function of RCD's and RCBO's.
To test sockets simply plug the device into the chosen socket and switch the socket on, compare the lit Neon lights with the check list on the device to ascertain the status of the socket under test. Repeat for all the sockets in the building.
A clear indication of a *PE error will be shown on the small LED screen if a dangerous contact voltage is present at PE
*PE = Protective Earth or Ground
To test RCD's and RCBO's Most modern domestic and commercial circuit boards include RCD or RCBO which are designed to trip if there is a fault in any part of the circuit or installation. This is to protect from fire or damage to the building.
How to test RCD's and RCBO's: Plug the device into any socket that is protected by an RCD or RCBO, press and release the small test button to the centre bottom of the device, if the RCD or RCBO is functioning correctly there should be a loss of power to the socket/circuit under test after testing reset the trip. If the RCD or RCBO failed to trip then this may indicate that there is a fault with the trip. Only one test per circuit is n ecessary.
Any failed or faulty RCD or RCBO must be replace as soon as possible to maintain full protection
Normal 0 false false false EN-GB X-NONE X-NONE MicrosoftInternetExplorer4 It is recommended that whentesting RCD's and RCBOs two persons should be present, one to operate the deviceand one at the consumer unit to observe the trip and do the resetting.
Warning the useof the RCD test button may result in an immediate loss of power to thecircuit or the whole electrical supply to the building, a warning to theoccupiers must be given before commencing testing to avoid accident or injury.
After testing a check must be carried out on all the applences that are plugged into the tested circuits to ensure that fridges and freezers are turned back on.
Tech Specs
Nominal Voltage: 240V AC
Frequancy Range: 50 Hz
Measurement Category: Cat III 300V
RCD Test Time: 60 to 300 mS
RCD Test Current: 30 mA ±15%
Contact Voltage: Threshold: <35V AC against ground depending on coupling to earth
Size/Weight: 76mm x 67mm x 74mm. 82g
IMT23009 Voltage Test Pen
A compact voltage testing device with both visual and audible indication, designed to offer quick and clear voltage detection.
The LED illumination offers peace of mind in event of a noisy environment
Features and functionality
Cat III 100V Compliant
Ergonomic styling
Complete with batteries
Full instuctions included
Tech Specs
Detection Range: 70 to 1000V AC (@50/60 Hz)
Normal 0 false false false EN-GB X-NONE X-NONE MicrosoftInternetExplorer4 Do not use the pen to testbelow 70V or above 1000V AC
If there are several circuits present,separate them far enough apart to perform a test on each circuit
Do not use if damaged
Voltage will not be detected inshielded or armoured cables
Always check the pen on a knownlive source before and after each test
Please Note: Thepen should only be used for information purposes only
NEED A GOOD IDEA FOR A BIRTHDAY, FATHERS DAY OR CHRISTMAS PRESENT? LOOK NO FURTHER
A handy kit, a great addition to any tool box, Used correctly and looked after they should give years of good service
As these divices have been in storage for a good while so we include a complimentary set of batteries just in case the included batteries are past their shelf life
Brand new sealed in a blister pack
Normal 0 false false false EN-GB X-NONE X-NONE MicrosoftInternetExplorer4
PaymentDetails.
You can pay bythe following methods: PayPal, Direct Bank Transfer (BACS) please ask for our account details, plus we also take credit or debit cards payments over the phone.
For deliveries outside the UK .
International postage will be shipped via a Royal Mailtracked shipping method dependent on the destination country.
Heavy, valuable or large parcels will be shipped with thelarger courier services but these tend to be costly, so you must ask for aquotation before purchase, and let us know how quickly you need the goods asthis greatly affects the price.
PostageCharges.
Please Note: The postage quoted is for both the cost of the postalservice used and the cost of packing materials used , please take this into consideration when leaving DSRratings.
Orders placed before 3 PM on any business day will be posted same day
Inclusive postage is offered on this listing by combining the item priceand the postage & packing costs. If this option is chosen it will be sentout via our basic postage method advertised on the listing.
We reservethe right to upgrade the postal service from the advertised should the needarise.
If you require it quicker please choose the Royal Mail 'Special Delivery'guaranteed next day delivery option, but please note there is an extra chargefor this option. Also note there are Saturday restrictions with this servicewhen ordering on Fridays.
Photographs.
I use mainly my own stock photos so the picture on the listing may differto the actual listed item, but will be a match.
The Items on sale.
After thesale is made, on rare occasions during cleaning and final inspection we mayfind that an item is damaged or faulty. If this was the last in stock and wehave an alternative item we will inform the buyer and send the alternative oneout.
Any questions please ask.
Thank you for viewing thislisting.
Please take a moment to review myother items.
Add me to your favourite sellers list and subscribe to myemail product updates.
Take advantage of our combinedpostage offer.
Please note: Went Vale is not registered for VAT, so we areunable to provide VAT invoices. You may obtain all the necessary paperwork fromyour 'My eBay' purchase history section 'View order details'.
It is recommended that this item and all my otherelectrical items are installed by a qualified electrician. The seller takes noresponsibility for injury/damage to persons or property due to incorrectselection or installation of equipment.
Many thanks.
