Schneider Ultimate Flat Plate GU6232PB/LED - 3g 1 or 2w Push/Rotary 0 to 100w Dimmer Switch

+

Our Delivery Information

  • (UK) Tracked Delivery 1-3 working days from £6.95
  • (UK) Special Delivery next day Mon-Sat delivery from £11.50 cut off time  Mon-Fri. 3.30pm. POSTCODE EXCLUSIONS APPLY-SEE DELIVERY INFORMATION. This service requires someone to be in to accept delivery and a signature. If this is not possible then the alternative option is to select Tracked 24.

Product information

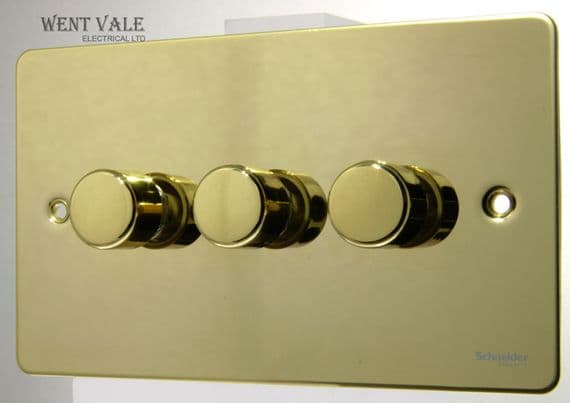

Schneider Ultimate Flat Plate GU6232PB/LED - 3 Gang 1 Way or 2 Way Push/Rotary 0 to 100w Dimmer Switch
Cat No: GU6232PB/LED
Ultimate Flat Plate Range
Description
Polished Brass 240vac Flat Plate push/rotary 3 gang dimmer switch
Push for on or off, the same set lighting level will occur when the knob is pressed until the knob is rotated. This switch has been adapted to use on LED lamps by replacing the GET with good quality LED compatible dimmer modules
Dimensions: 148 x 88 x 1.5mm
Conforms to BSEN 60669-2-1
Rotary push button 2 way dimmer switch.
Only use one two-way dimmer in a two-way switching circuit.
Lamps
These dimmer switches are suitable for dimming LED lamps requiring TRIAC dimming

The switch is also compatible with good quality dimmable low voltage transformers.

The switch is not compatible with Fluorescent/CFL lamps, or motor loads.

BEFORE INSTALLATION PLEASE READ THE INCLUDED INSTRUCTION SHEET.

Installation
All metal decorative face plates must be earthed in accordance with the latest edition of the IEE wiring regulations and should be installed by a qualified electrician.
These decorative wiring accessories should not be installed onto a newly plastered or freshly decorated walls until thoroughly dry (refer to the manufacturers data for determining drying times) as some wall finishes may contain alkali's and solvents.
To prevent tarnishing gaskets should always be fitted between the plate and the wall. It is strongly recommended that the products are only installed when the building works are completed, as exposure to brick, cement and plaster dust and the like may adversely affect the finish and operation of the products. Alternatively as protection a plastic bag should be retained on the product during the installation process, also note that masking tape should not be applied to the product.
Cleaning Advice
These decorative wiring accessories have been manufactured with the finest materials and some are treated with a fine coat of lacquer to give a hard durable finish.
The only cleaning treatment required is by wiping over the plate with a soft dry lint free cloth, however for more stubborn marks, a very lightly moistened cloth with a mild detergent such as washing up liquid can be used. Note: This liquid must be diluted before use.
Under no circumstances should any abrasive or solvent polishes, cleaning fluids, paint removers or similar treatments of this kind be applied to the product.
New and Unused

Technical specifications

Finish: Polished Brass
MPN: GU6232PB/LED
Standards: BSEN 60669-2-1
Type: Dimmer Switches
Current Rating: 6A
Voltage Rating (AC): 250V
Brand: Schneider
Condition: New
Product Code: GU6232PB/LED
Weight: 0.4kg
